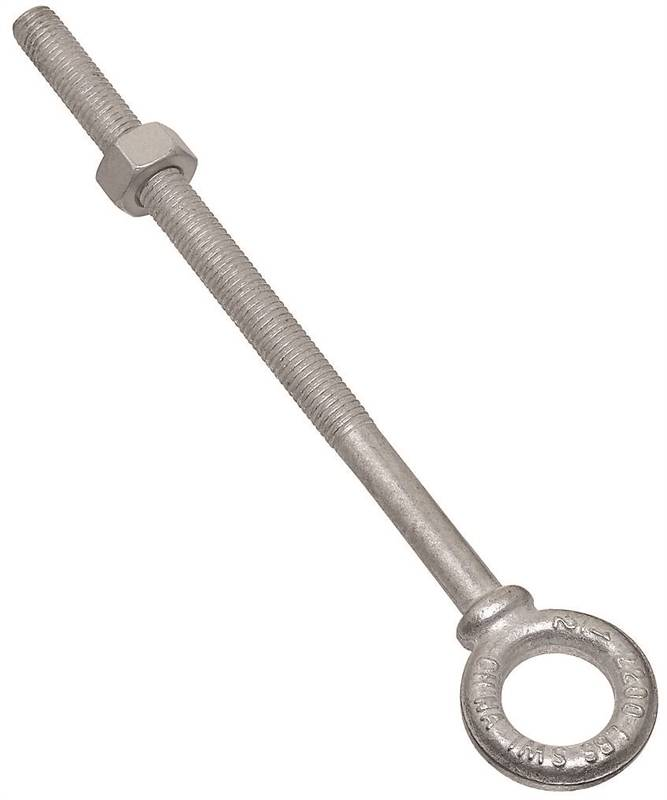

National Hardware N245-175 Eye Bolt, 1/2-13 Thread, 5-7/8 in L Thread, 1 in ID x 1-3/4 in OD Dia Eye, 8 in L Shank

PRODUCT OVERVIEW

General-purpose eye bolt used where high strength is required. Ideal for marine and agricultural applications. Has shoulder so bolt can be tightened in place. Forged steel for superior strength. Galvanized for corrosion resistance. With hex nut.

Product Details

Eye Diameter:

1 in ID x 1-3/4 in OD

Includes:

Hex Nut

Material:

Galvanized Steel

Overall Length:

9-29/32 in

Shank Diameter:

1/2 in

Shank Length:

8 in

Thread Length:

5-7/8 in

Thread Size:

1/2-13

Working Load Limit:

2200 lb

Features

Designed with shoulder so that it can be tightened in place

Bar code label is color coded to identify wire size

Pintle punched for 5/16 in (1/2 in size) or 3/8 in (5/8 in size) bolts

Great strength (SWL) is clearly defined on label

When subjected to 312 hr of salt fog spray testing, zinc-plated hardware showed severe corrosion while hardware with WeatherGuard protection withstood these harsh conditions with very little deterioration
