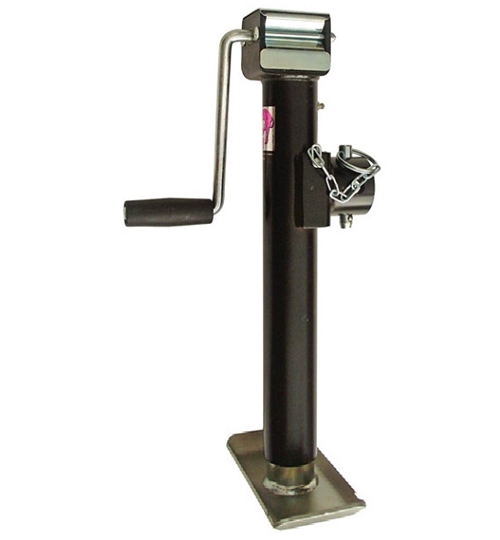

RAM 5K Sidewind Pipe Mount Swivel Jack 10in Lift TJP5001SB

Ram Sidewind Pipe Mount  Swivel Jack - 5,000lb Capacity

For welding to frame of the trailer, the following jack comes with a mounting bracket for weld-on applications. Jack is ideal for uses with ag, industrial, commercial, recreational, and many other types of trailers.

• Includes pin and lanyard assembly
• pressed in grease zerk for easy greasing of the jack
• Weld-on
• Sidewind
• Sand foot attached
• 10" Lift
• Black primer
• 5,000 Static Capacity
• 3,000lb Lifting Capacity

(A) Retracted=17.5"
(B) Extended=28.5"
(C) Clearance=6.25"
