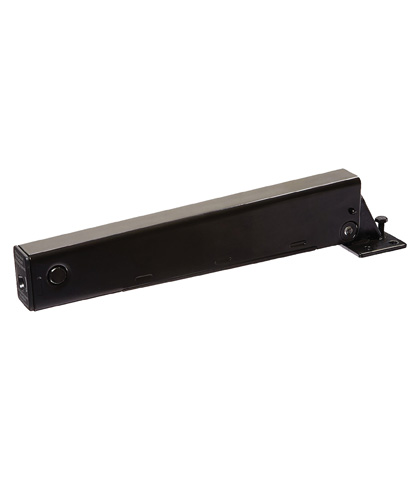

TB175 HYDRAULIC GATE CLOSER, <110 lbs.

Features

Flush mount closer
Closes gates up to 125 lbs. easily and gently
Will work with most in-line hinge arrangements.
Complies with most pool gate safety recommendations
Adjustable closing speed
Adjustable latching speed
Hold open feature
Installs on top, middle or bottom of either right or left hand of gate
Mounts on opening side of gate, pushing it closed
The TB175 may not be compatible with offset hinge arrangements or arrangements that create more than 2″ between gate post and gate, as it is critical to mount the closer as close as possible to the gate’s pivot point.
To retain product warranty & restrict gate opening angle, a gate stop must be installed

Dimensions & Specifications

Dimensions: 12 1/2″ L x 2 1/2″ W x 2 3/8″ D
Max. Gate Weight: 125 lbs.
Max. Gate Width: 54″
Max. Opening Angle: 90 degrees
Type of Gate Material: Metal, Vinyl, Wood
Closing/Latching: Adjustable
Material: Steel
Color: Black or White
Finish: Powder coated
Hinge Arrangements: In-line
Opening Pressure: Variable depending on gate size
